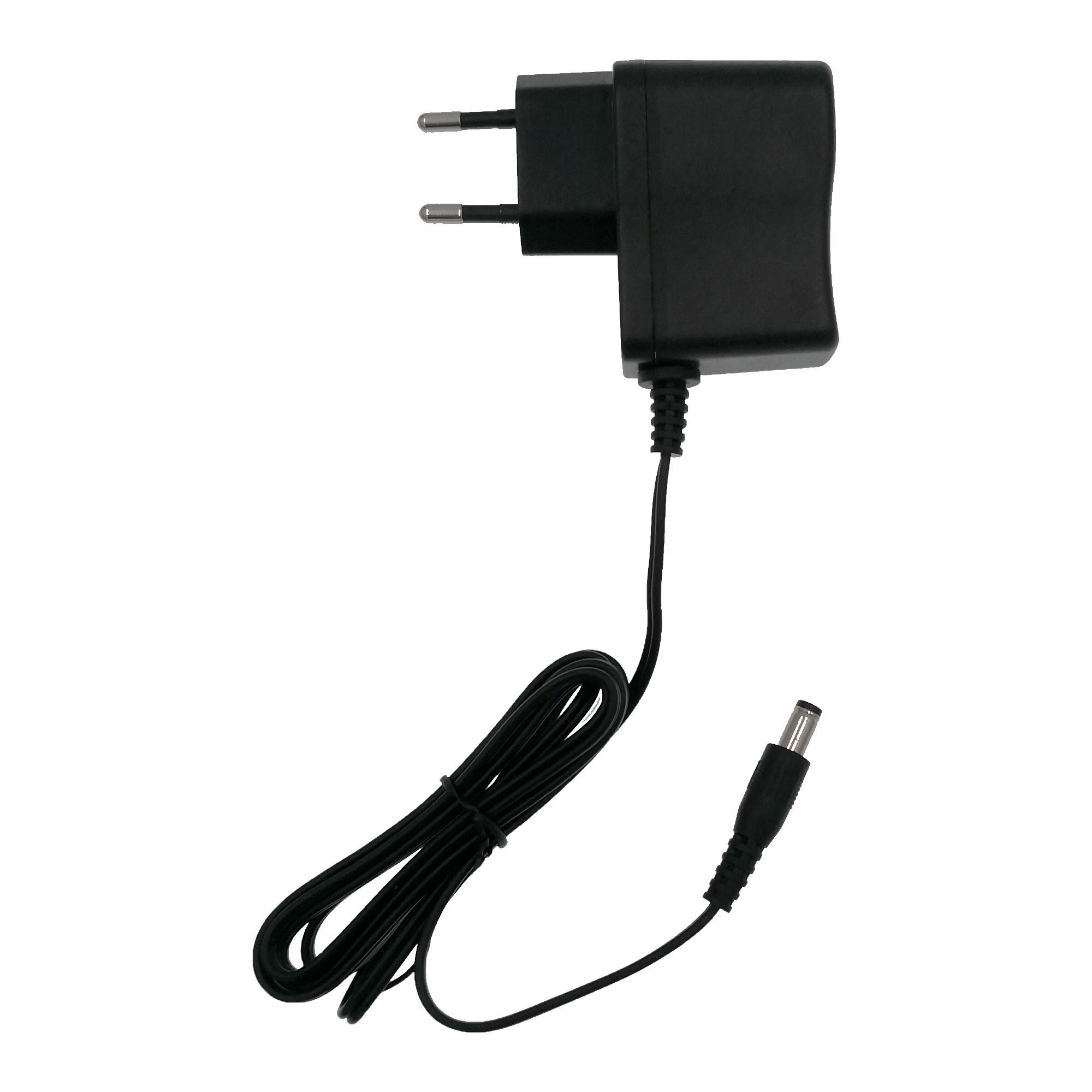

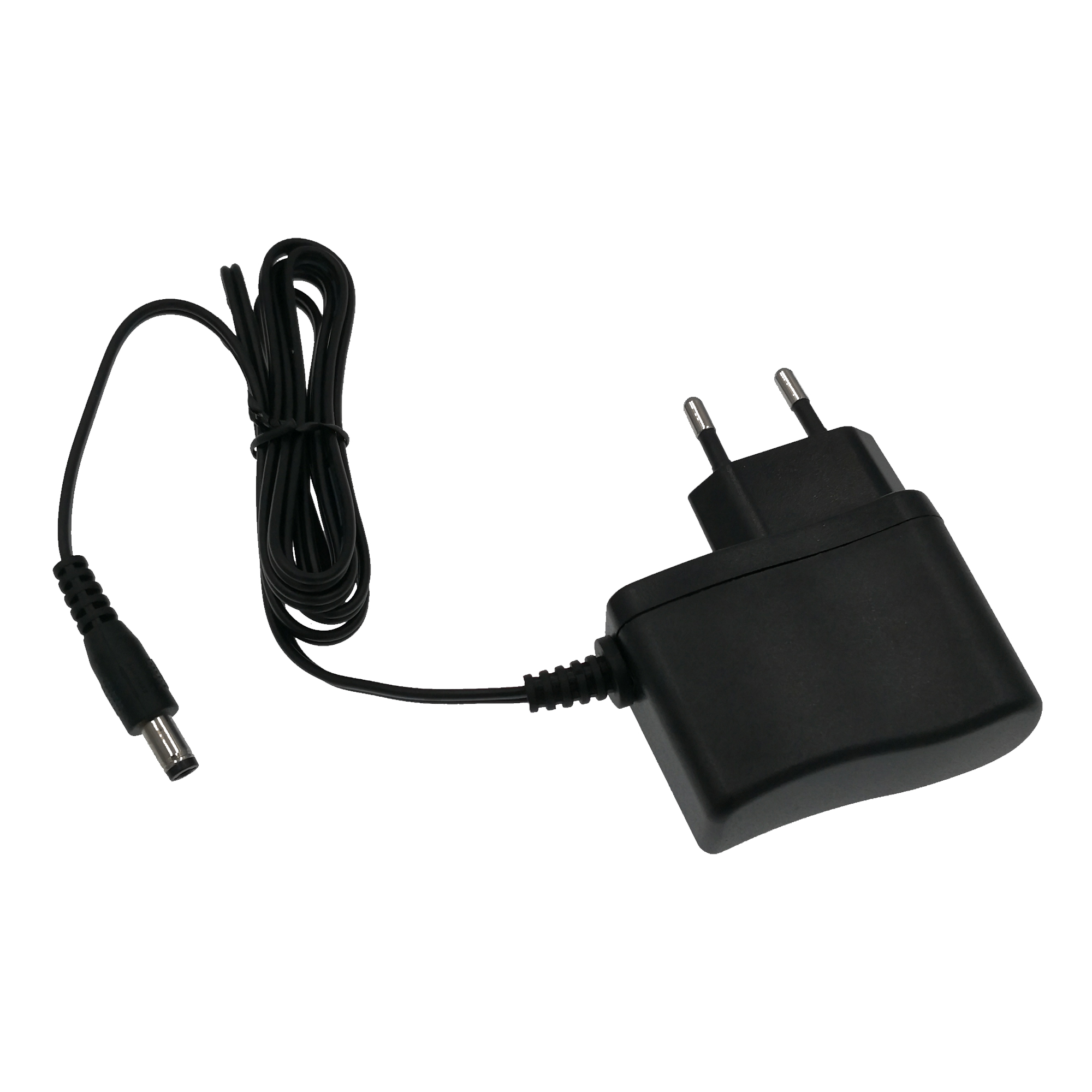

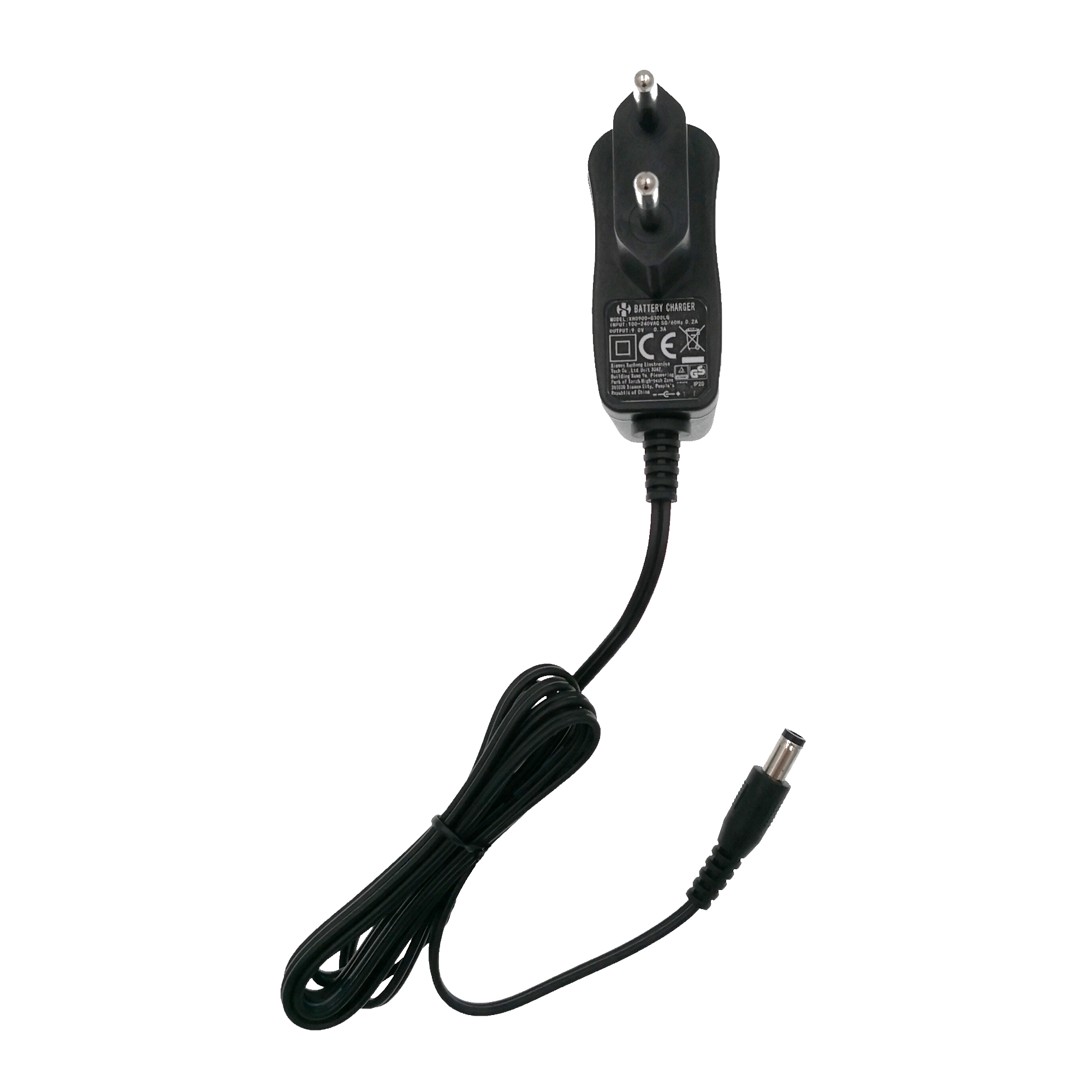

9V/0.3A GS LED strip light Power Adapter

  • Certificate: GS
  • Application:switching power supply, GS wall-mounted power adapter, LED light power adapter,LED controller
    Color: Black/White Optional
    Input: Universal Input
    Output: 9V/0.3A
    DC Connector: Universal Size Optional
    Minimum Order: 500 Pieces
    Lead Time: 15-20 Days

Product Description

Input Specifications Output Specifications
Voltage 90-264VAC Voltage 9V
Frequency 47-63Hz Current 0.3A
Current 0.2A Power 2.7W
Safety Approvals Ripple and Noise 100mVp-p max
GS

EMC

RoHS

REACH

Turn On Time 15-30mS
Voltage Accuracy ±3%
Current Accuracy ±3%
Efficiency
Product Shell Features Protections
Flame retardant

Ultrasonic bonding & Whole sealing

Small volume & Streamlined

Portable

Short circuit protection

Over voltage protection

Over current protection

Over temperature protection

Tests Environmental Specifications
Hi-pot Test: 3750VAC, 60S, 5mA max

Lightning surge: up to 1000V (accept 3000V)

Leakage Current: 0.25mA max

Burn-in Test: rate load, 40±3℃, 4 hours

Operating Temperature 0-40℃
Storage Humidity 5%-95%RH
Storage Temperature -20~+80℃
Temperature Coefficient 0.05%/℃
