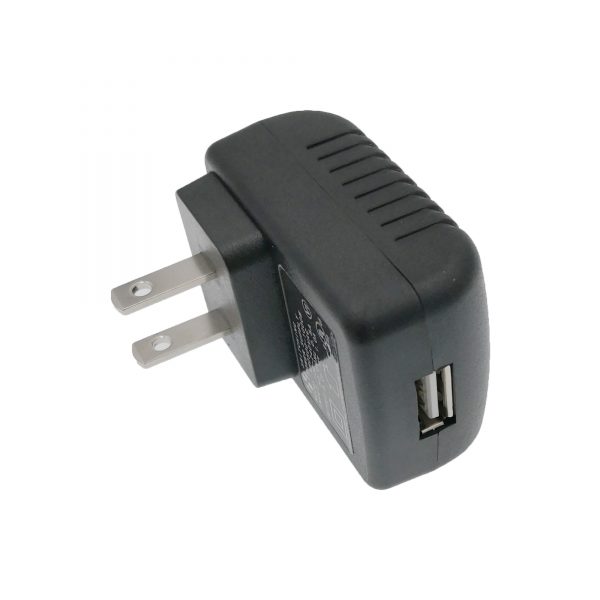

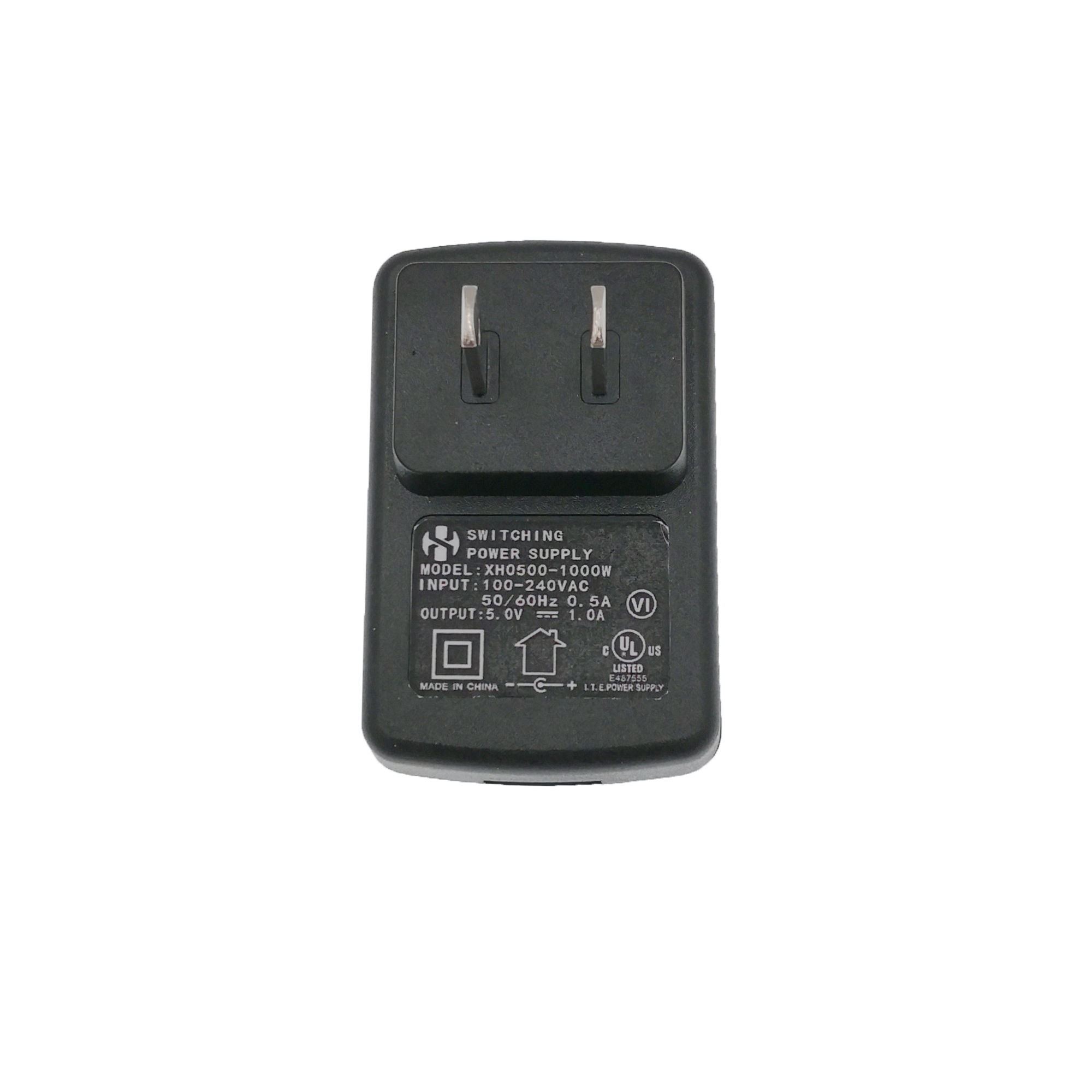

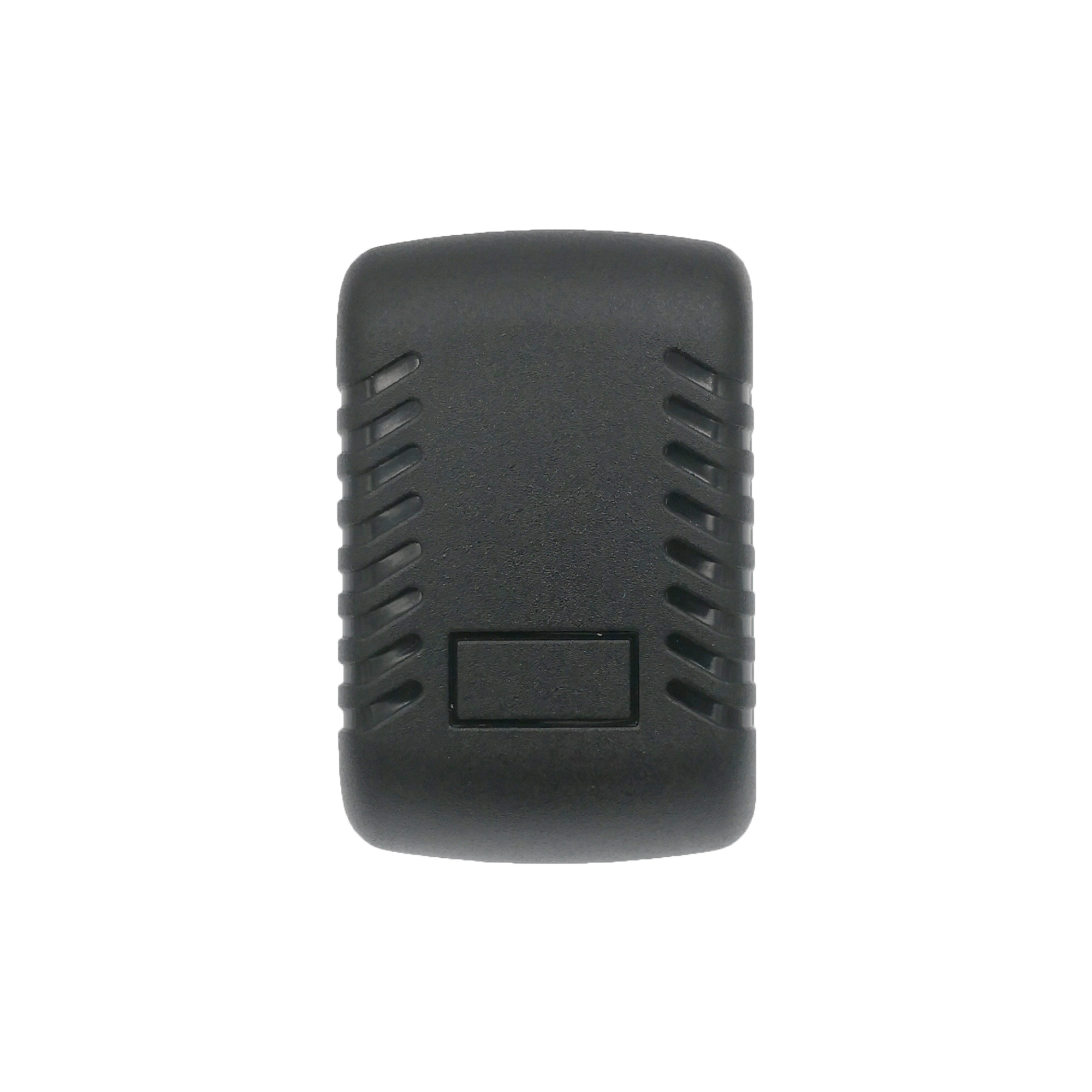

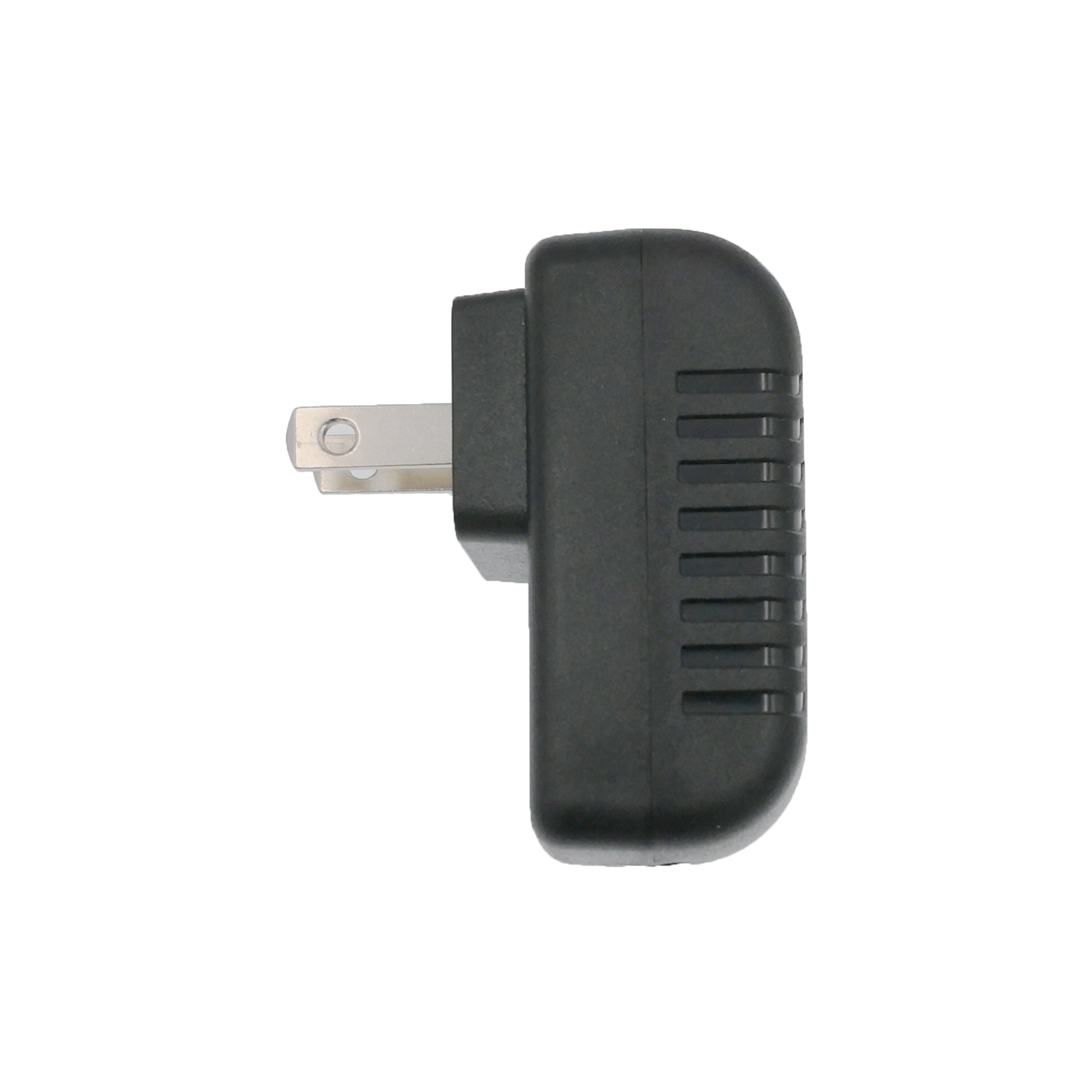

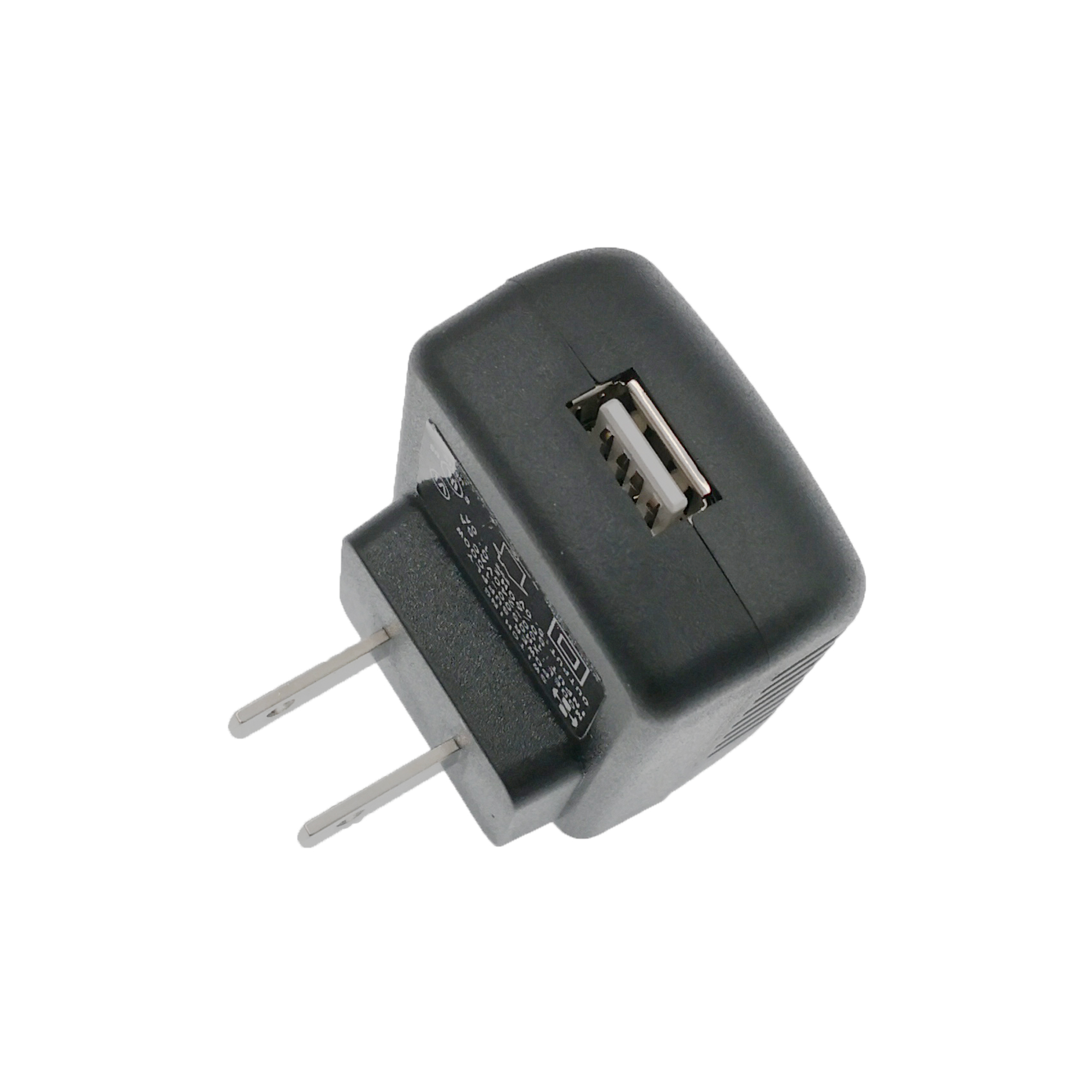

5V/1A UL Power Adapter

Certificate: UL
Color: Black/White Optional
Input: Universal Input
Output: 5V/1A
DC Connector: Universal Size Optional
Minimum Order: 500 Pieces
Lead Time: 15-20 Days

Product Description

Input Specifications Output Specifications
Voltage 90-264VAC Voltage 5V
Frequency 47-63Hz Current 1A
Current 0.2A Power 5W
Safety Approvals Ripple and Noise 100mVp-p max
UL

FCC

RoHS

REACH

Turn On Time 15-30mS
Voltage Accuracy ±3%
Current Accuracy ±3%
Efficiency
Product Shell Features Protections
Flame retardant

Ultrasonic bonding & Whole sealing

Small volume & Streamlined

Portable

Short circuit protection

Over voltage protection

Over current protection

Over temperature protection

Tests Environmental Specifications
Hi-pot Test: 3750VAC, 60S, 5mA max

Lightning surge: up to 1000V (accept 3000V)

Leakage Current: 0.25mA max

Burn-in Test: rate load, 40±3℃, 4 hours

Operating Temperature 0-40℃
Storage Humidity 5%-95%RH
Storage Temperature -20~+80℃
Temperature Coefficient 0.05%/℃
